Mechanical Pre-Teatment

Reliable Technologies powered by our brands Passavant® & Noggerath®

It is crucial for the subsequent purification and recycling processes, that solids are efficiently separated from industrial or municipal wastewater. Therefore, the Passavant-Geiger provides products, which can be ideally adapted to suit the respective requirements and conditions.

On this page more_vert

Explore our portfolio

Insights

Our machines for the further processing of extracted (recyclable) materials present a sound overall concept for the first stage when employed in combination with our rakes and screens, conveying systems and shut-off devices.

The central task of the inlet works/headworks is the separation of coarse solids such as rocks, wood, foliage, sanitary products, toilet paper, etc. and also sand and grease. Reliable pre-treatment of the wastewater is crucial for all subsequent treatment processes. Blockages and obstructions are prevented in downstream biological and/or physical processes and the general strain on the plant is eased.

The optimal adjustment of screen gap widths and sieve hole diameters are of particular significance here. For a convincing “screening result” in municipal and industrial applications, these must be perfectly tuned to the respective medium, volume of flow and local installation conditions. Reliable conveying systems and shut-off devices ensure the intake/discharge and transport of water and substances.
Passavant-Geiger can deliver individual components or develop complete solutions which are tailored to your specific needs.

download
Water Treatment - Imagebrochure Download (PDF, 10 MB)

Passavant® Cable Operated Bar Screen COB

Many references worldwide with over 50 years of operating experience: The Passavant® Cable Operated Bar Screen COB is used as a coarse or fine screen for the mechanical pre-treatment of wastewater.

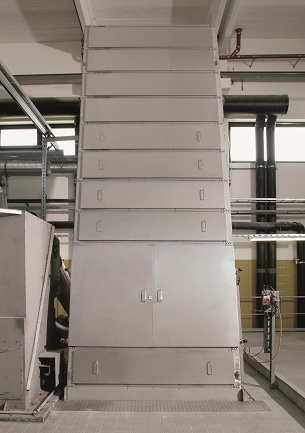

Passavant® Climber Screen KRC

One of the best in its class: Used for coarse or fine cleaning, the continuously developed Climber Screen works efficiently and with low maintenance as a front or back-raked screen.

Passavant® Multi-Rake Bar Screen KUR-C / KUR-HD

The successor to the proven KUR offers high quality, economic efficiency and excellent cleaning performance.

Passavant® Multi-Rake Bar Screen KUR-Defender

Successful use in wastewater treatment plant and pumping station operation: Coarse and fine screening ensure thorough removal of solids.

Passavant® Multi-Rake Bar Screen KUR-S

The process-proven machine type for wastewater treatment – completely redesigned in terms of construction, low-maintenance and low-wear, and thus particularly economical in use.

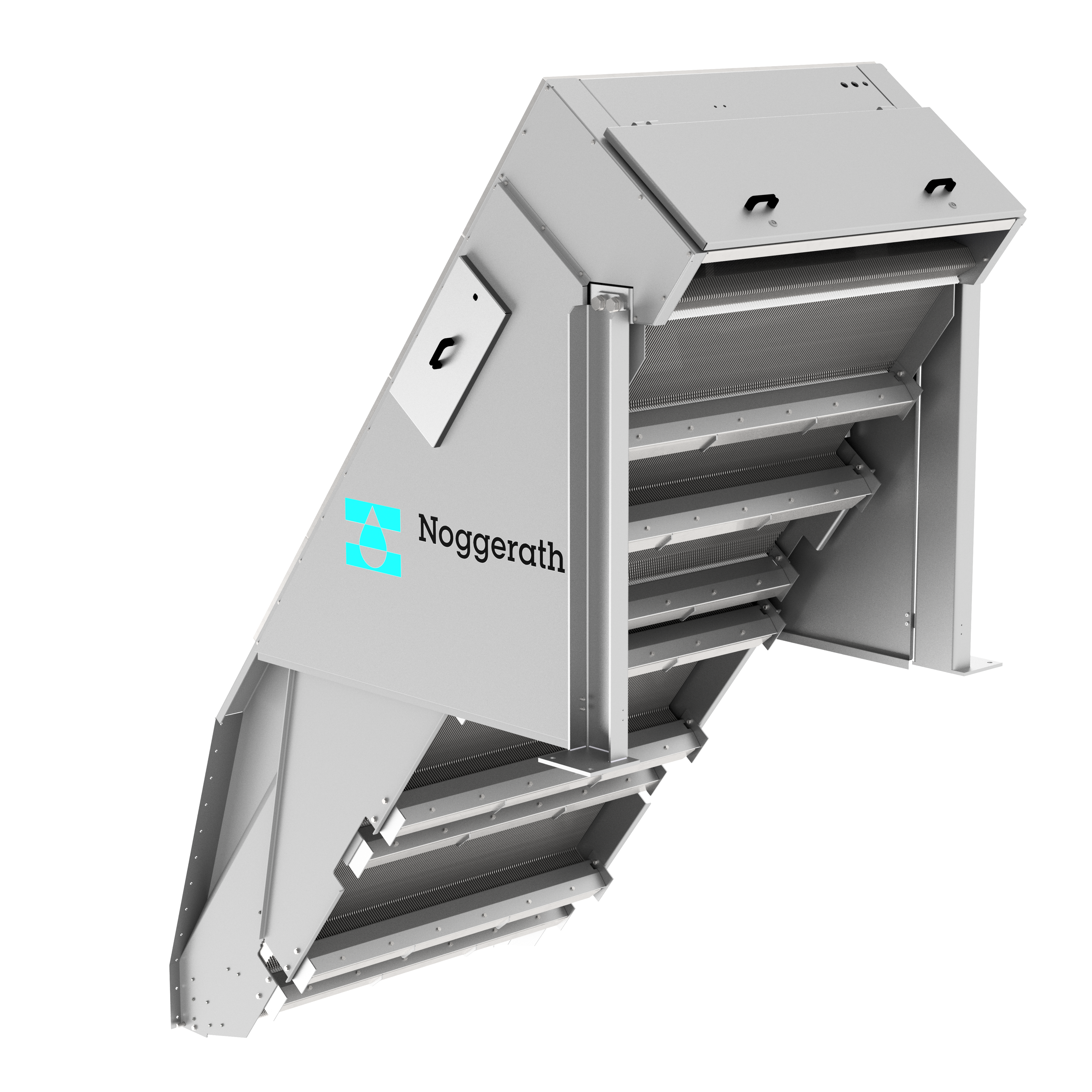

Passavant® / Noggerath® Step Screen PSS

Further developed to increase functionality, operational reliability, stability and ease of maintenance: The Passavant® / Noggerath® Step Screen is available as a channel version or tank version for…

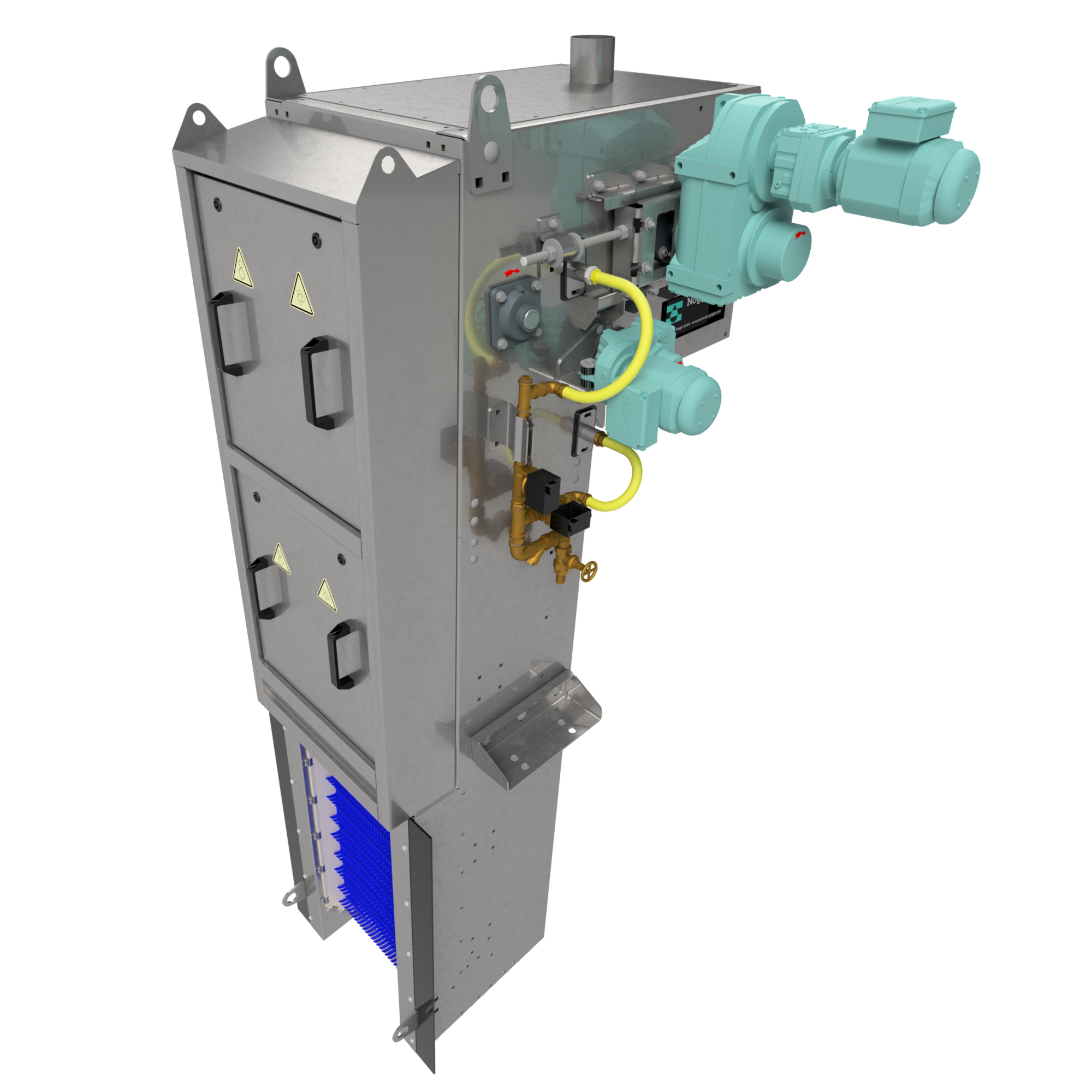

Noggerath®­ Continuous Belt Screen­ BS

The economical and space-saving solution – robust, durable, flexible and proven in municipal and industrial applications for more than 35 years.

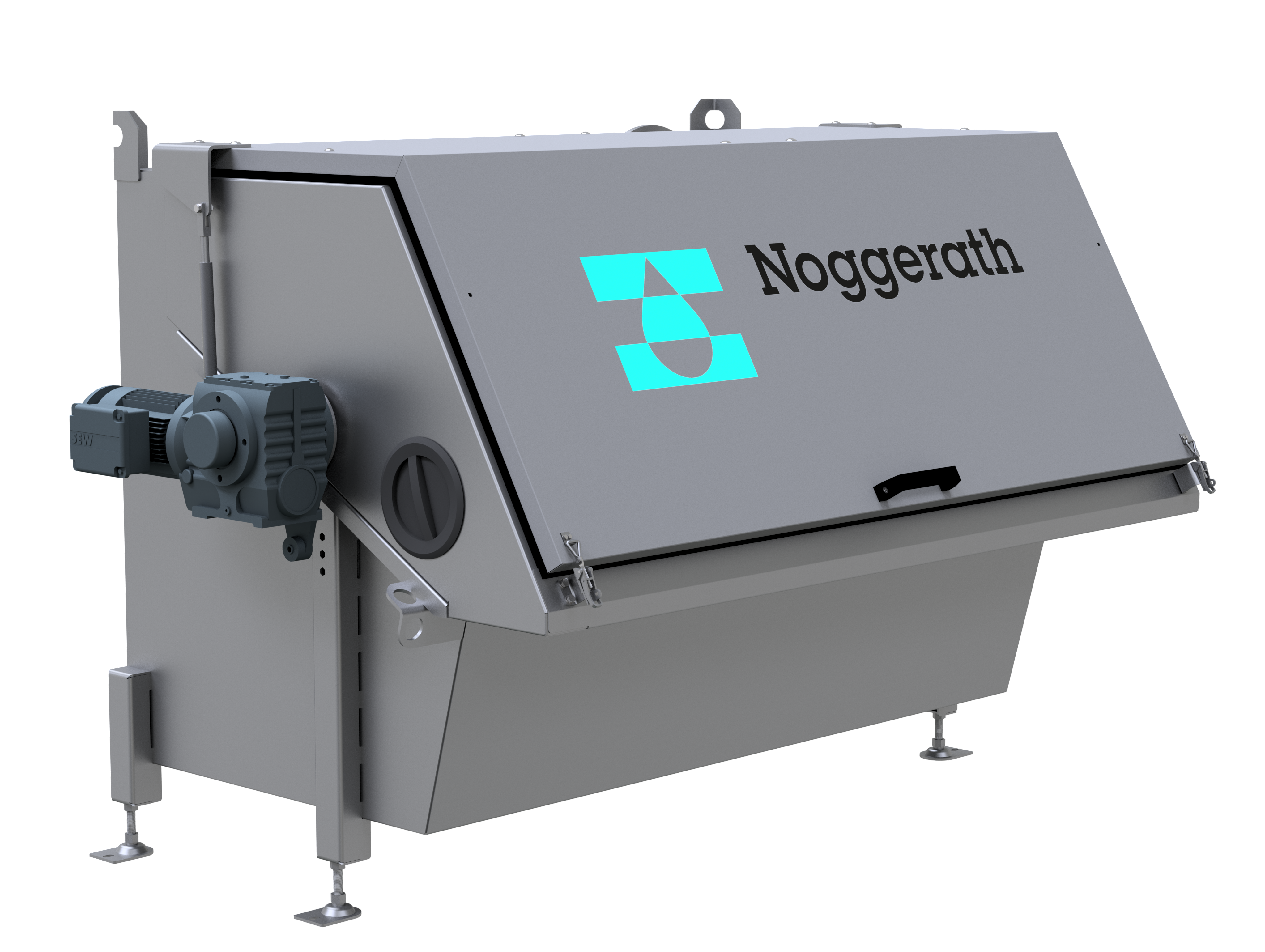

Noggerath® Rotary Drum Screen RSH-E

The reliable, continuously operating screening system for the separation of floating, greasy and sticky solids. Proven in use in both the municipal and industrial sectors.

Alt

Noggerath® Centre-Flo™ CF

Next stage design for enhanced function and operational efficiency Fine and Ultra-fine screening for municipal and industrial wastewater applications to protect efficiently downstream processes at…

Noggerath® Overflow Screen OVF / OVF-R

Reliable separation and filtration of solids in municipal and industrial wastewater treatment plants. Proven many times over for the protection of water or downstream processes.

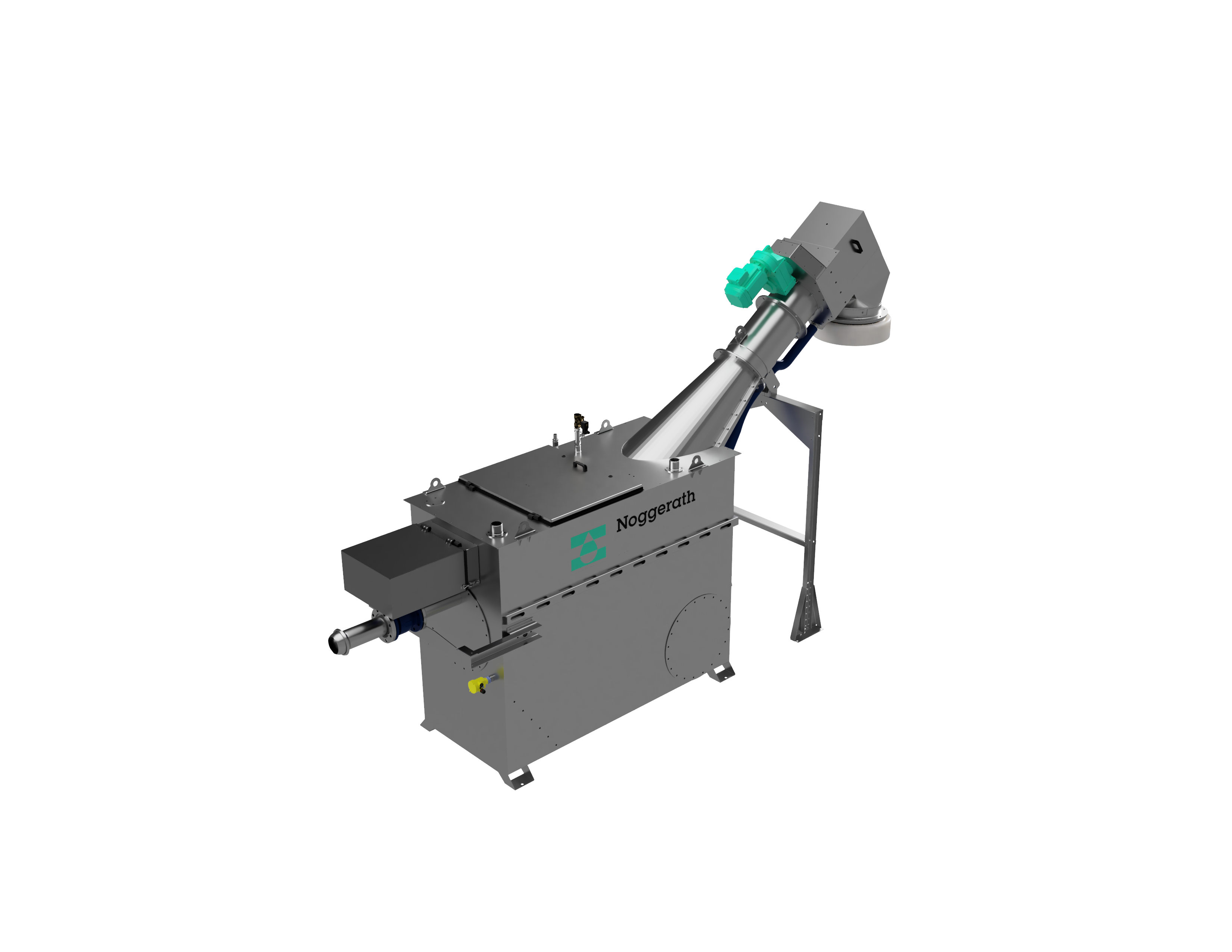

Noggerath® Septage Receiving Station NSI-SRS

The robust and versatile station for receiving septage sludge from tankers is also used for receiving industrial wastewater or for sludge screening.

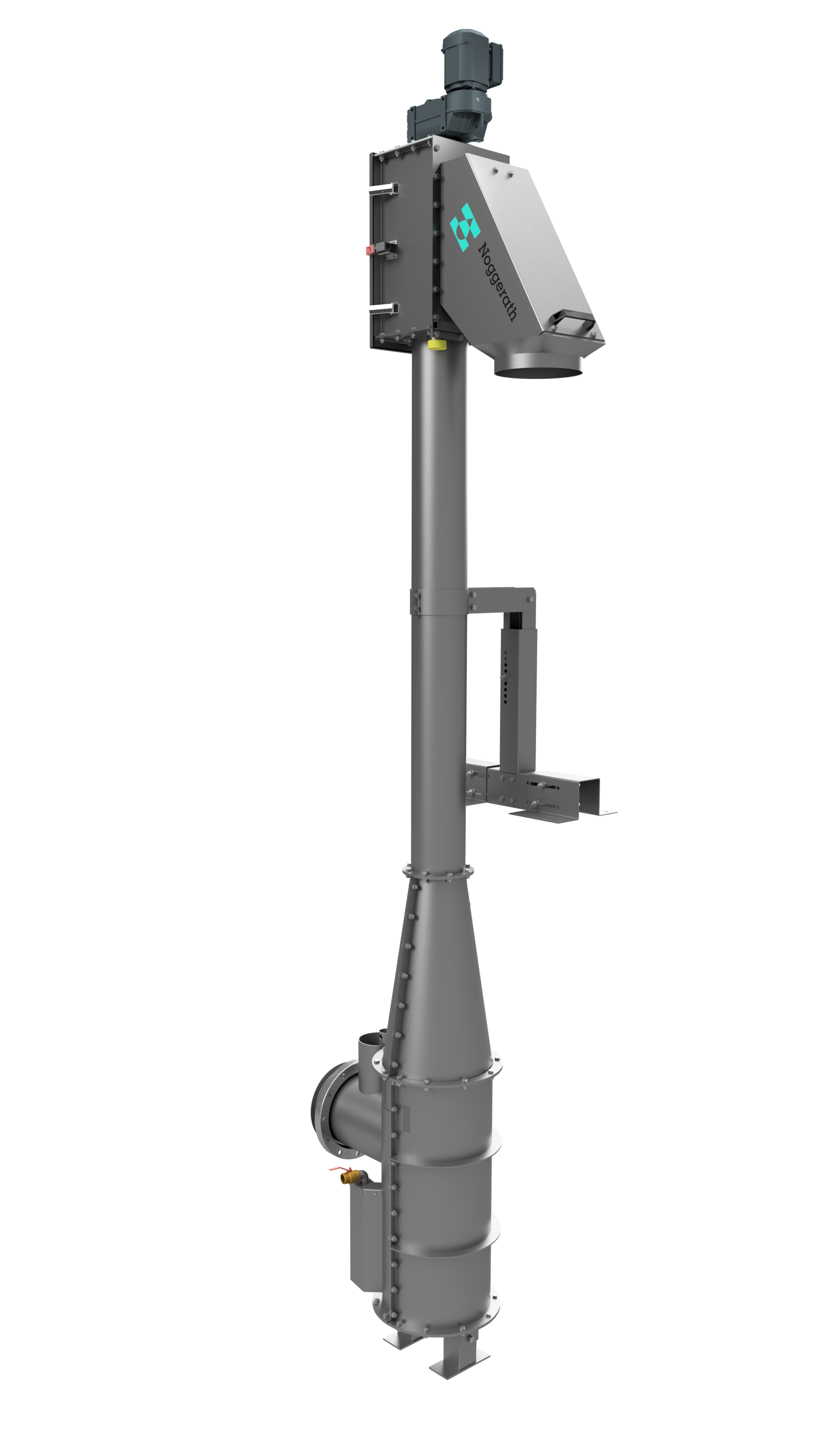

Noggerath® Vertical Sieve Screen NSI-V

Reliably protects downstream pumps, thus improving performance and operational reliability of sewers. Ideal for installation in pump sumps, underground chambers and pump stations.

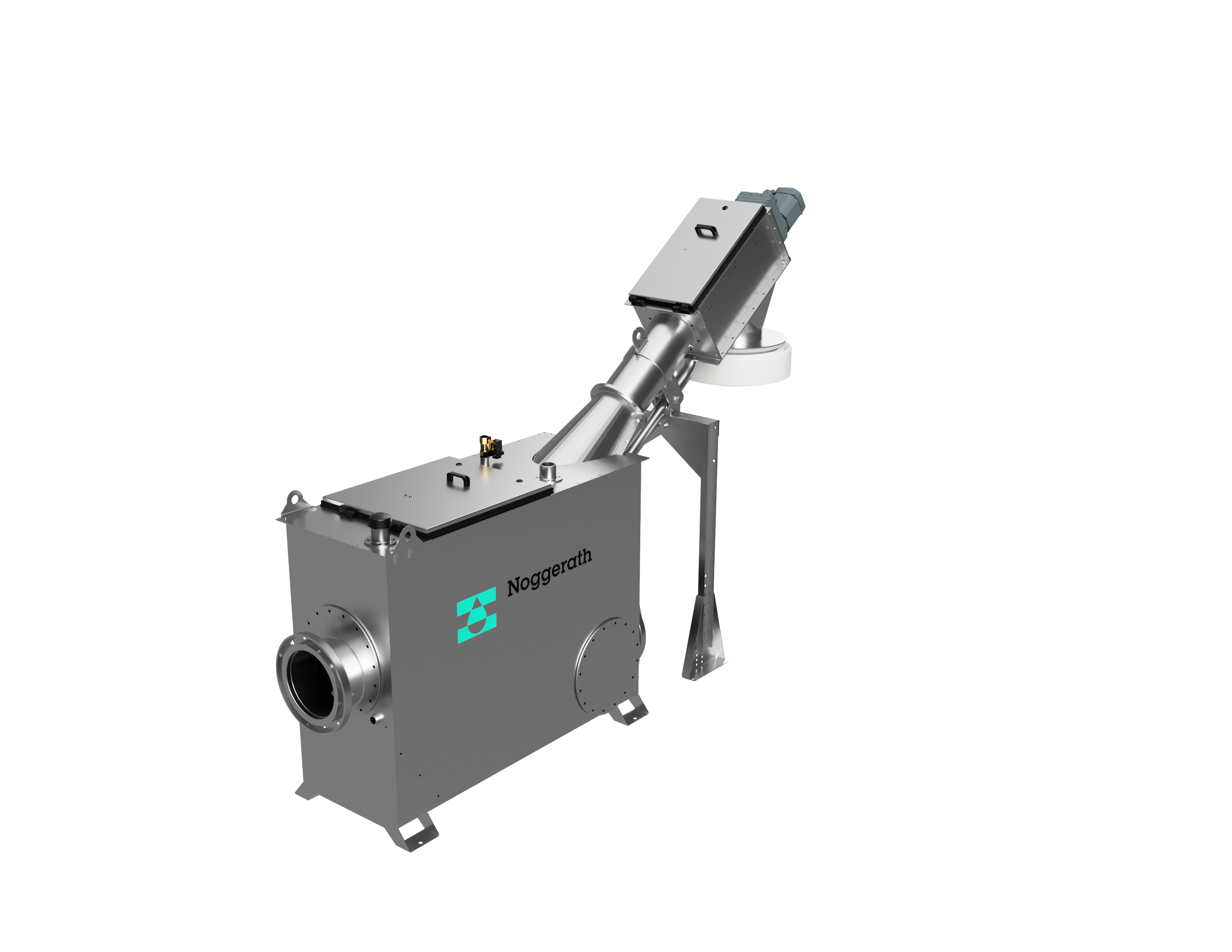

Noggerath® Spiral Sieve NSI-T / NSI-T-RED

Fine screening of wastewater in a tank with a perforated or wedgewire screen, including conveyance of screenings, dewatering, compacting and discharge. Equipment for the fine screening of wastewater…

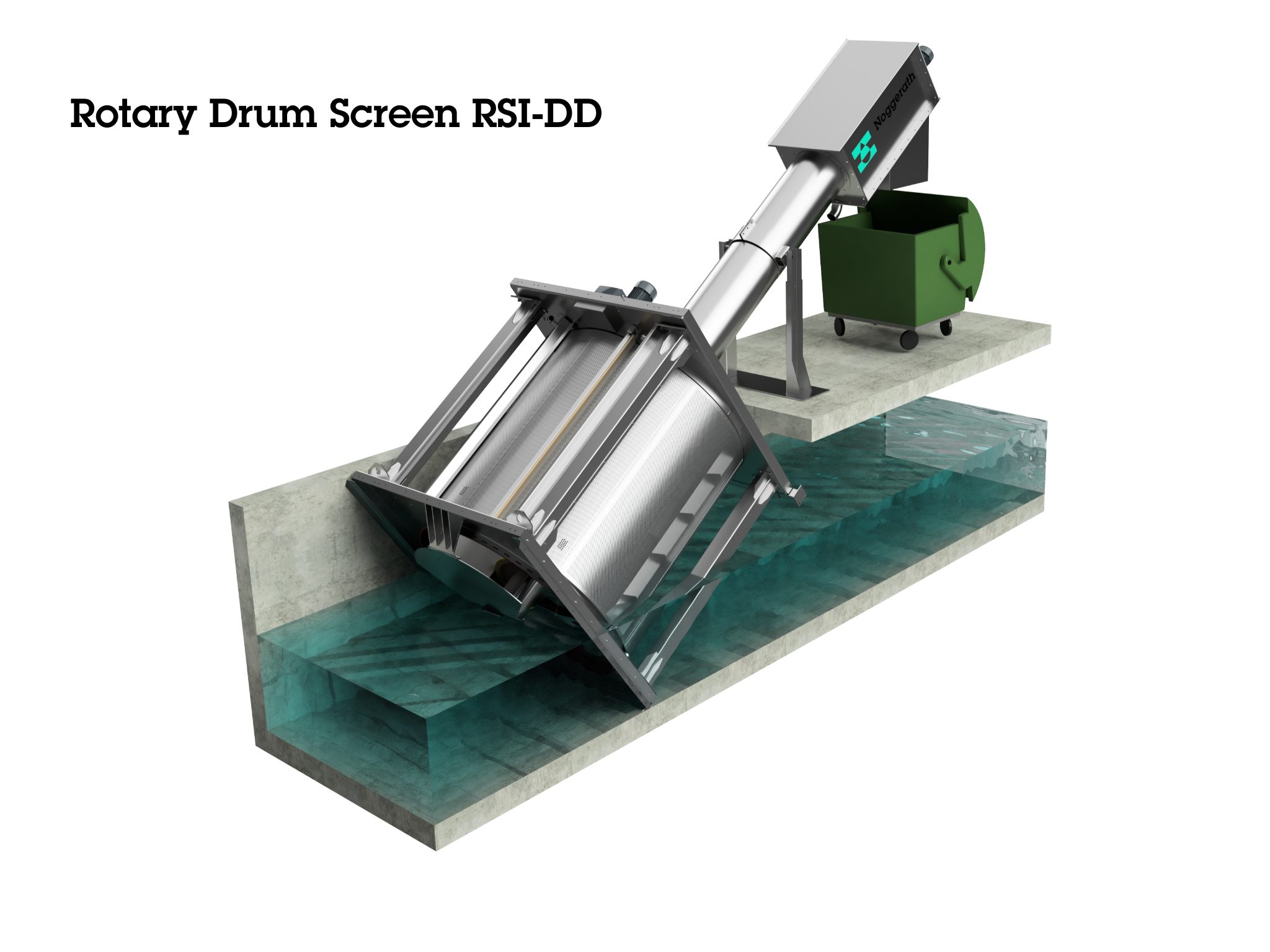

Noggerath® Rotary Drum Screen RSI-DD /RSI-DD-RED

The compact system with proven double drive concept. The screen drum and screw/spiral conveyor are driven independently of each other, eliminating the need for a rotating arm in the inlet area.

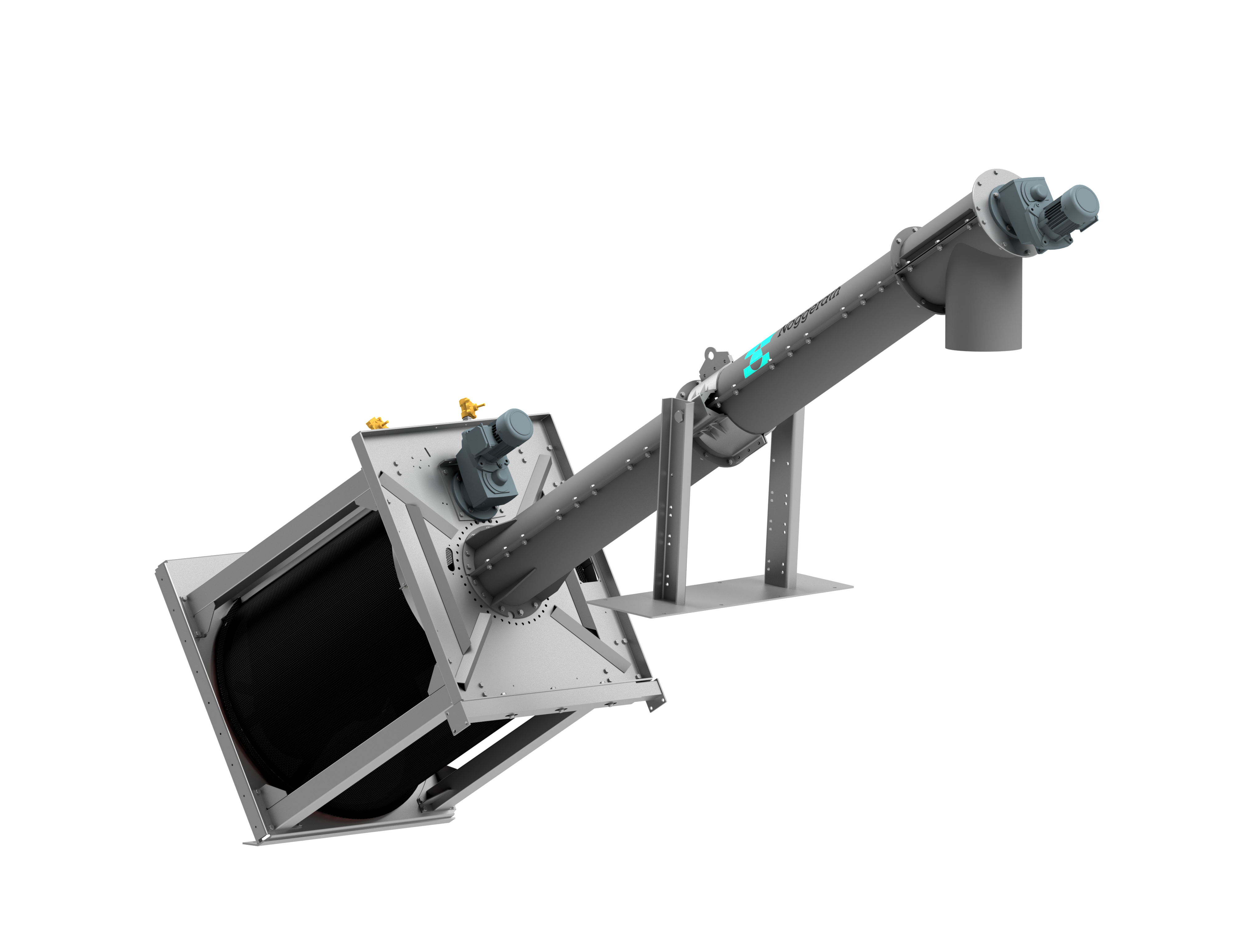

Noggerath® Rotary Drum Screen RSI-DF

Two revolutionary concepts in one machine: A double filter system provides both pre-screening and fine screening, and the screen drum and screw/spiral conveyor are driven independently of each other. …

Noggerath® Rotary Drum Screen RSH-I

The all-rounder in municipal wastewater treatment plants and in industry. In daily use for more than 25 years – robust, reliable and cost-efficient.

Noggerath® Rotary Drum Screen RSH-I-F

Separation and discharge of solids or respectively contaminants from a liquid phase for disposal or, where appropriate, for recycling.

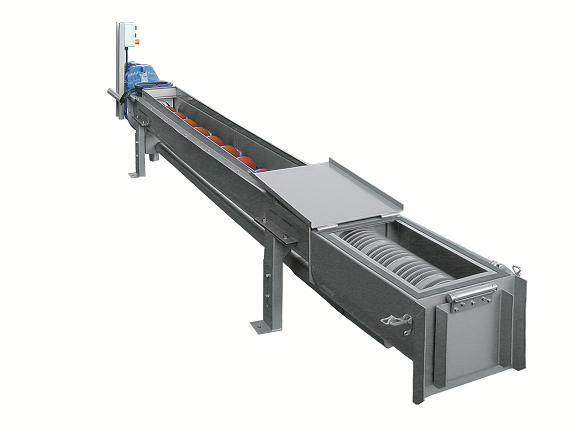

Noggerath® Spiral Compactor SCD

Conveying, dewatering and compacting of sieving and screening material in one system - flexible, hard-wearing, reliable: Size, length and installation angle can be optimally adapted to local…

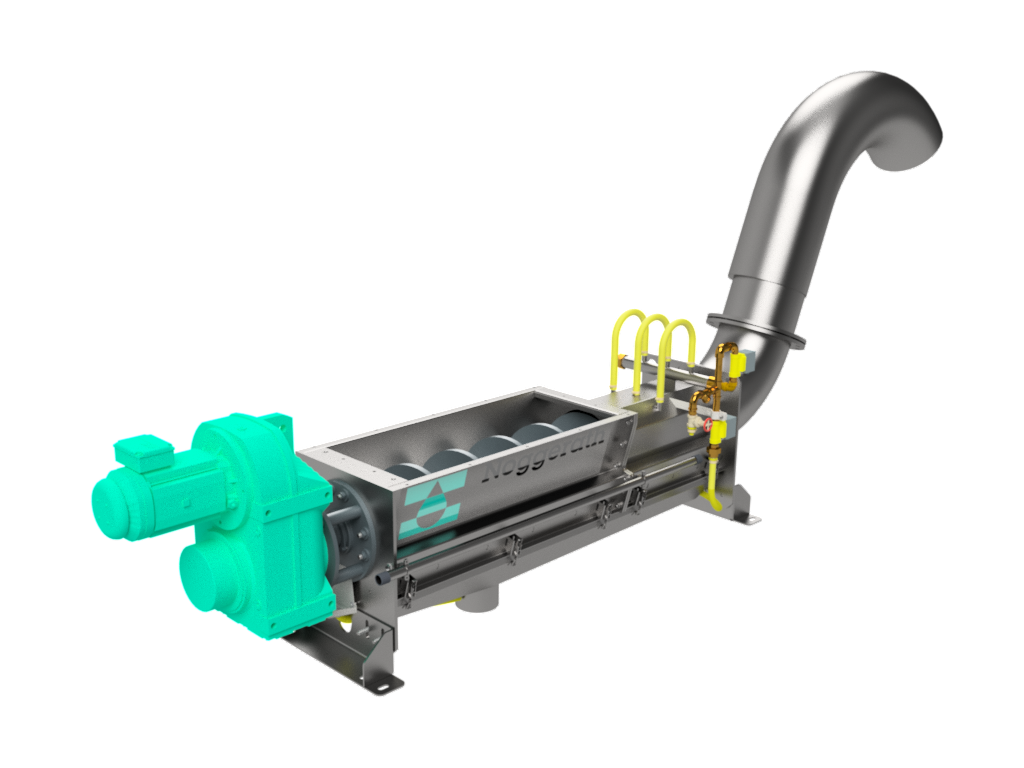

Noggerath® Wash Press NWP Screenings Press NSP

Simple, flexible and versatile: The Noggerath® Wash Press NWP / Screenings Press NSP has proven its performance worldwide and can also be easily integrated into existing plants.

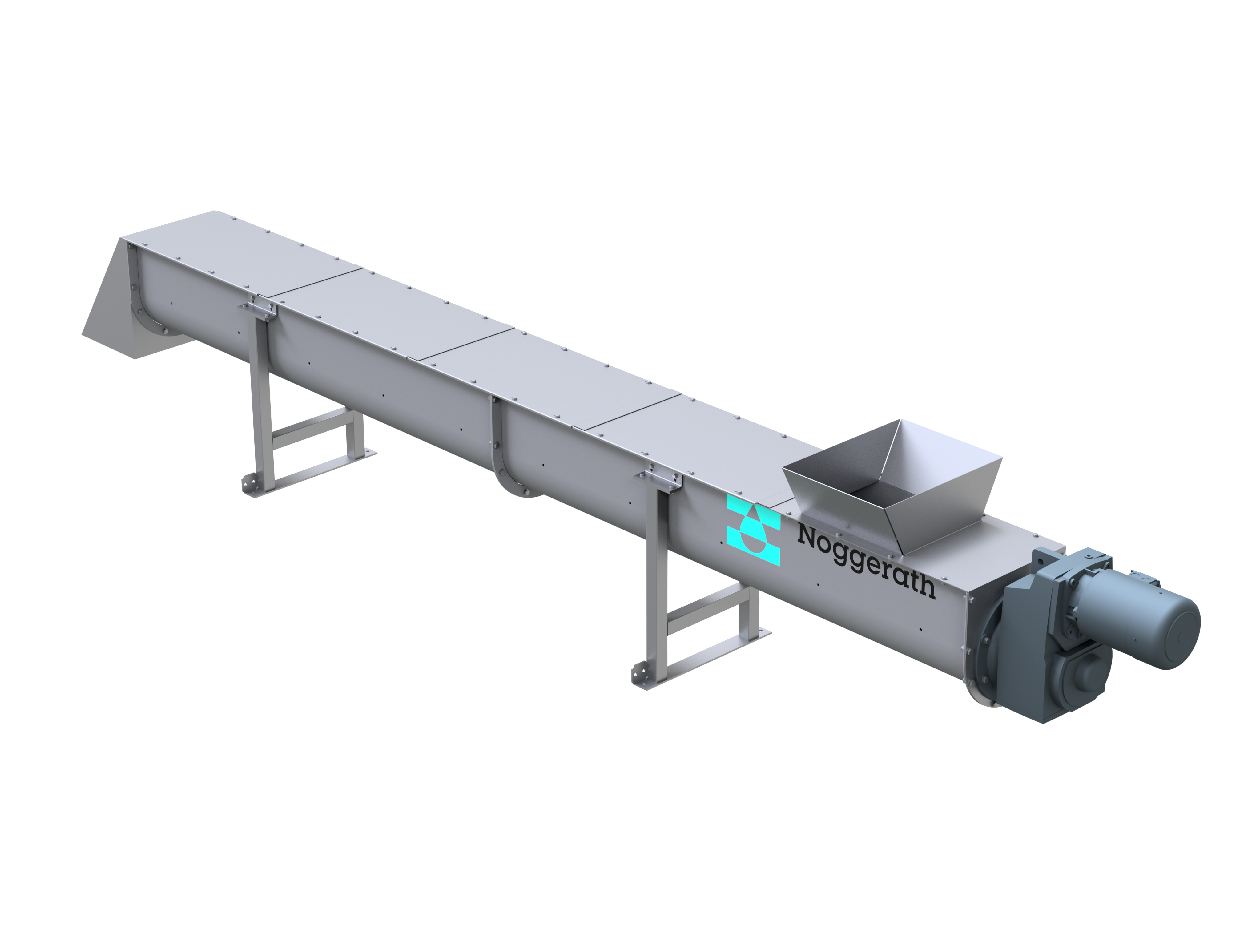

Noggerath® Spiral Conveyor SC / SCT

The long-lasting solution for municipal wastewater treatment plants as well as industrial plants: quick and easy to maintain thanks to shaftless spiral and available in lengths of up to 30 meters.

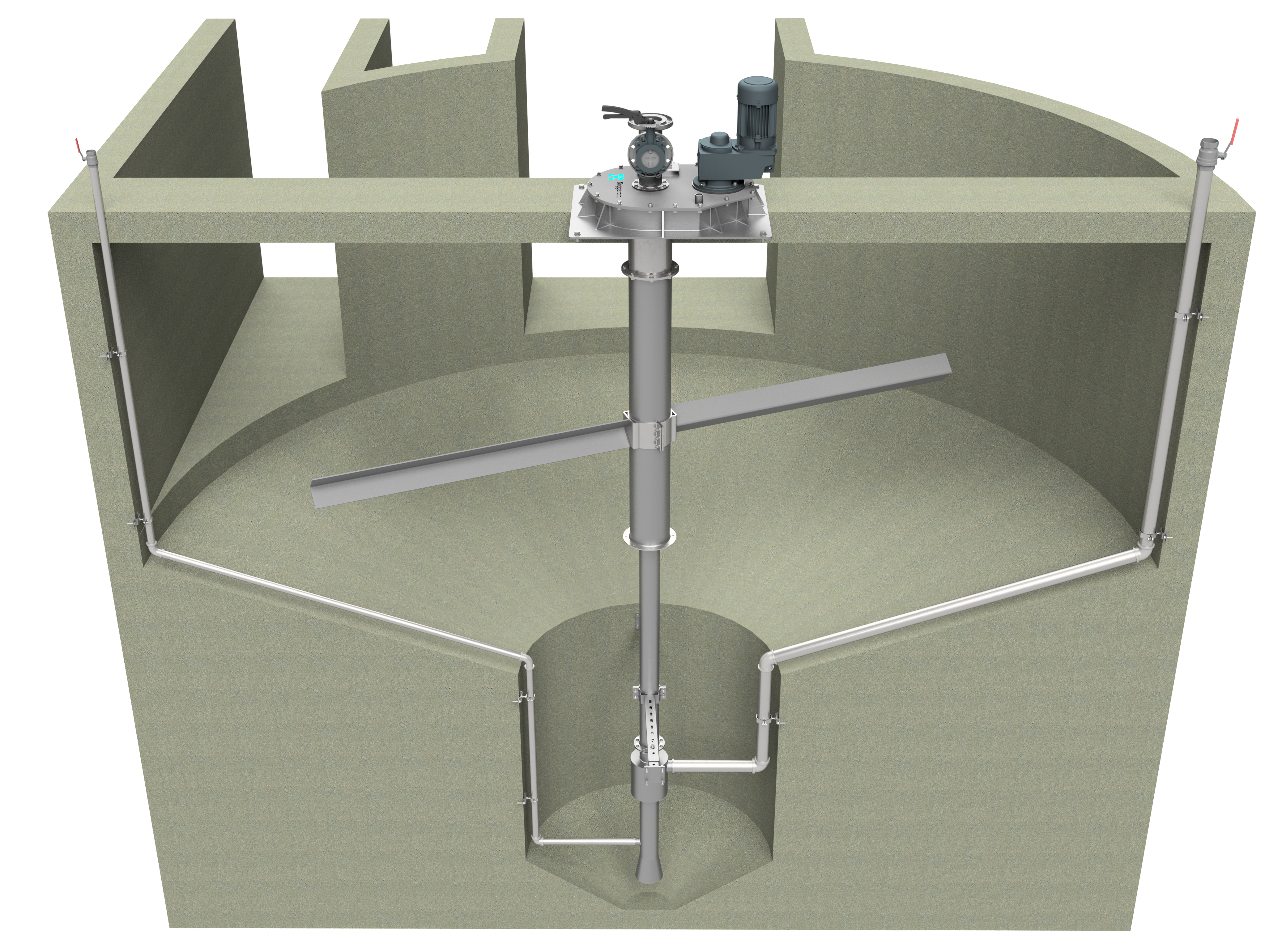

Noggerath® Circular Grit Chamber GCC

With 20 years of operational experience, the Noggerath® Circular Grit Chamber GCC has established itself as a tried and tested solution for the removal of grit and other settleable solids in…

Noggerath® Circular Grit Washer GWC

Successful concept for municipalities and industry: environmentally conscious disposal, massive reduction in the amount of residual sand that has to be disposed of, lower transport costs, improved gas…

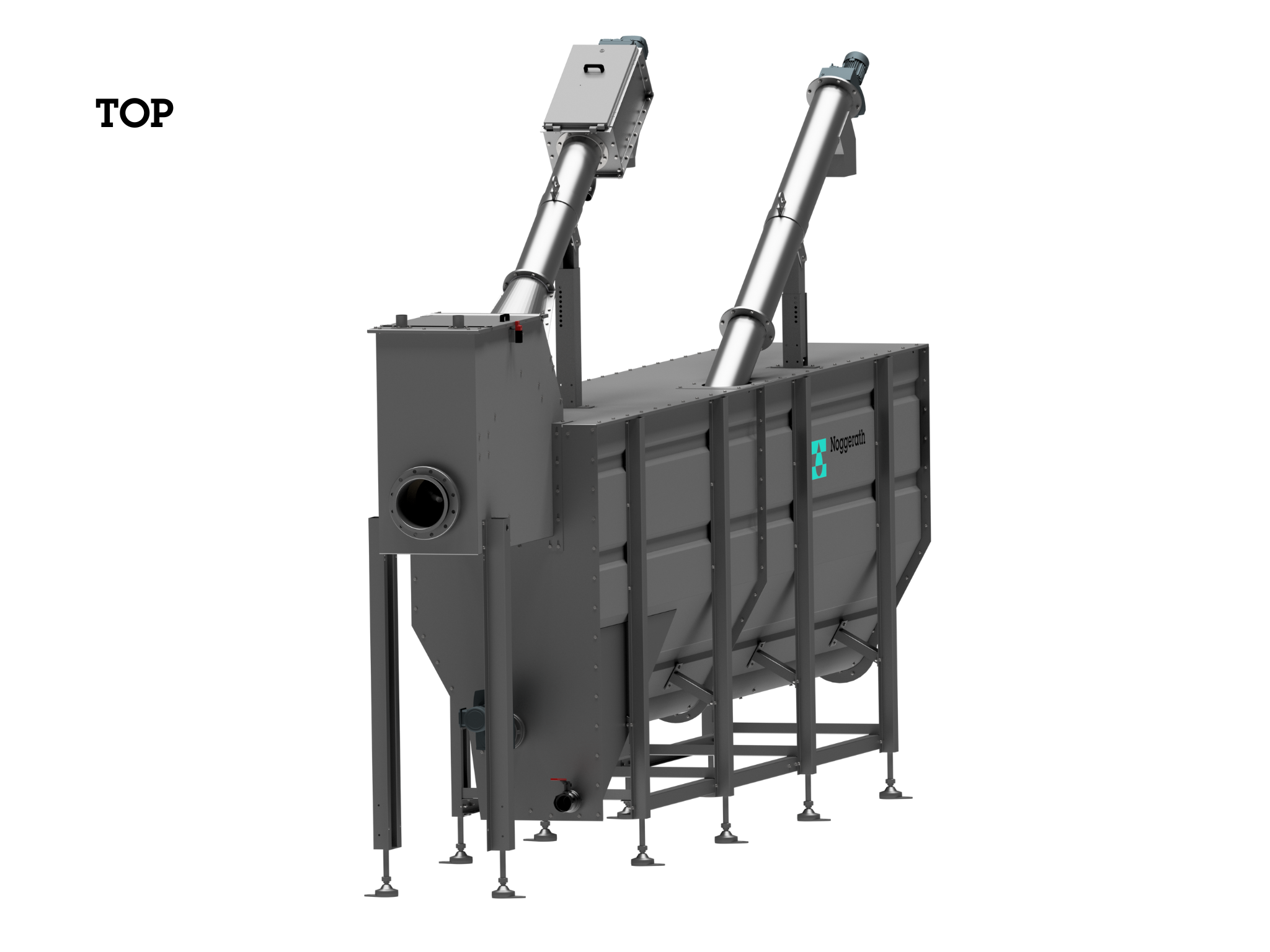

Noggerath® Combined Unit TOP / TOP-F

Combines complete mechanical pre-treatment in a single compact unit. Wastewater fine screening, screenings dewatering, grit separation with the option of fat, oil and grease (FOG) removal – all in one…

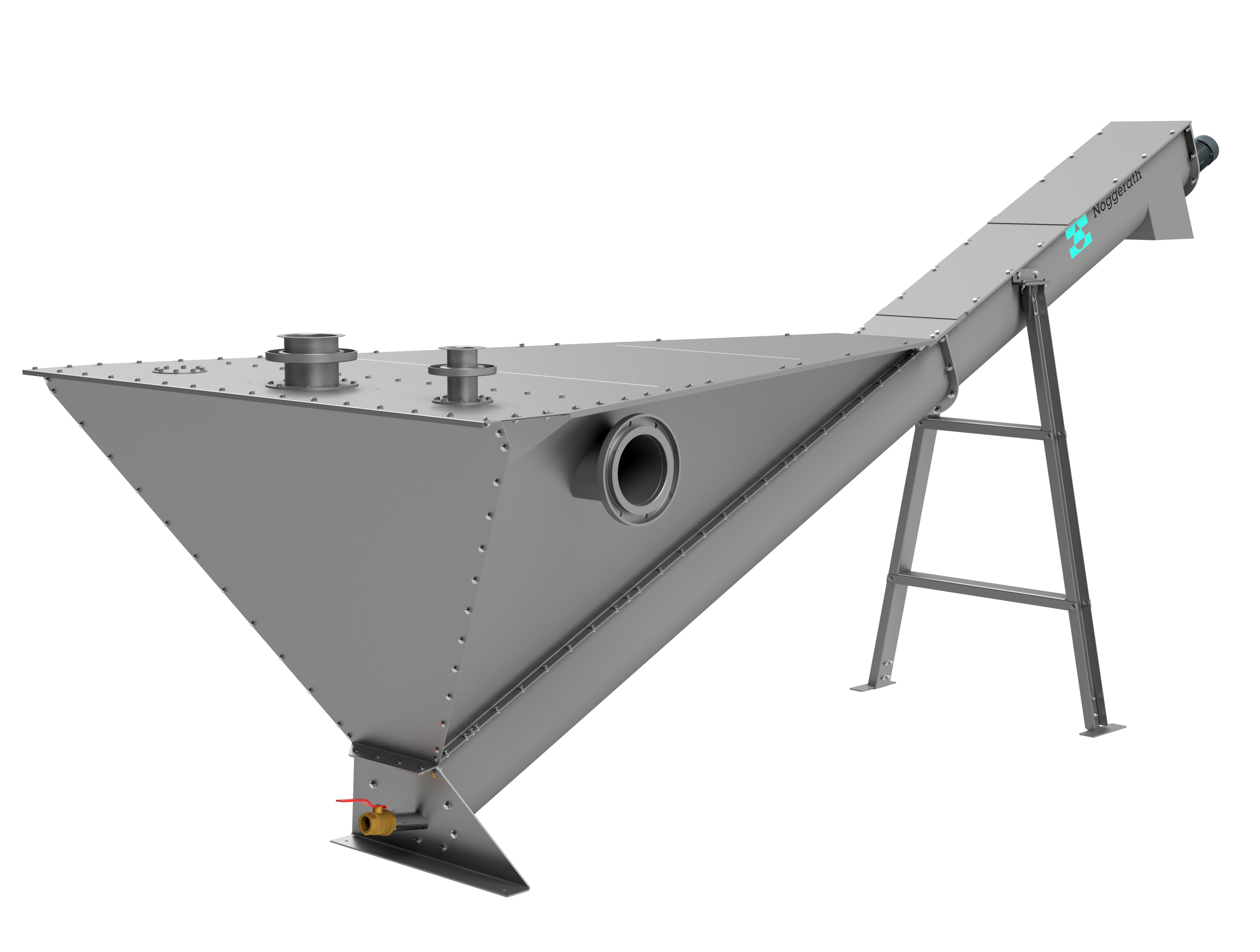

Noggerath® Grit Classifier GS

Proven for many years in solid/liquid separation of sand/water mixtures. Excellent separation results in the separation of heavy substances from different industrial process water circuits.

Noggerath® Vortex Grit Removal System GCC-V

Over 20 years of experience in the removal of grit and mineral substances – the proven solution to prevent deposits and reliably protect moving machine parts from abrasion.

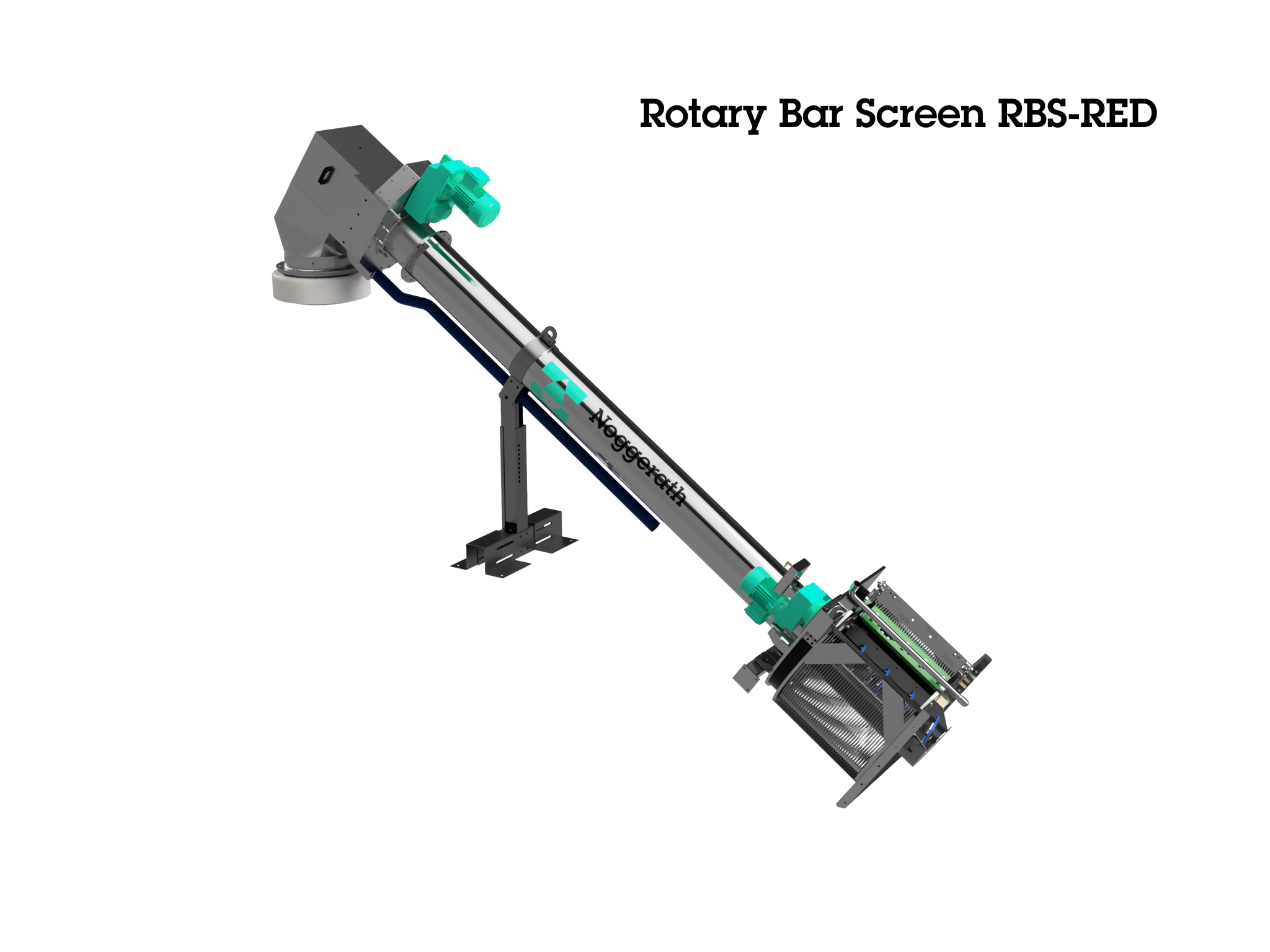

Noggerath® Rotating Bar Screen RBS-RED & Septage Receiving Station RBS-SRS-RED

The compact system for automatic wastewater treatment: Proven dual drive concept without bearings and without a fixed rotating arm in the inlet area - efficient operation, easy maintenance.
