- High flow rate due to curved screen panels
- Low pressure drop
- Direct drive via a gear wheel
- Blades mounted in the screen baskets prevent screenings from falling back into the raw water (RSH-M)
- Integrated emergency overflow (RSH-MG)
Noggerath®
Rotary Drum Screen RSH-M / RSH-MG
The versatile micro screening drum system – convincing through efficiency and economy. The RSH-MG-D product variant satisfies even the highest water treatment requirements.
Unique Features
Insights

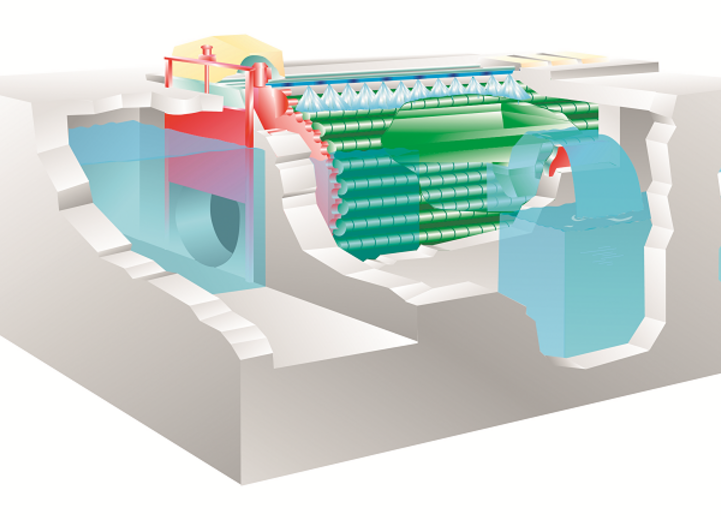

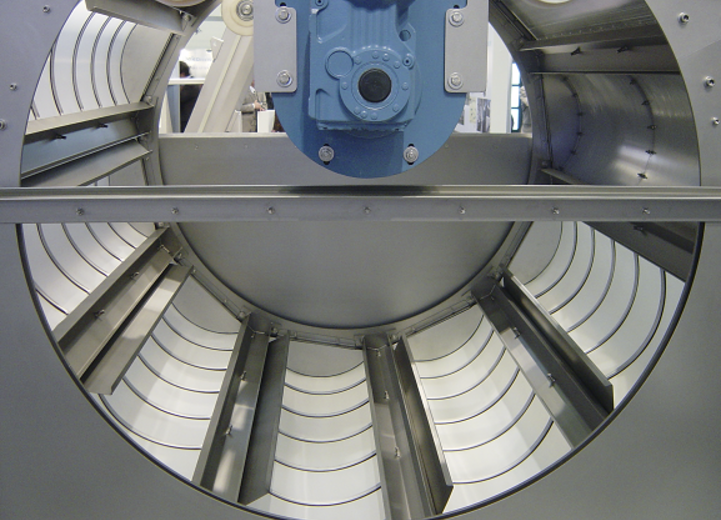

For use in municipal wastewater technology, the microscreen drum system (CarbonExtract®) represents an effective and very economical alternative to conventional screening and primary clarification systems. The heart of the Noggerath® Drum Screens RSH-M / RSH-MG is formed by a rotating drum consisting of sieve baskets mounted to each other.
The raw water passes through the drum from the inside to the outside. In the process, the dirt particles adhere to the screen basket surface. As a result of the rotational movement of the drum, the filter cloth is cleaned by a spraying device, which considerably improves the filtration performance.

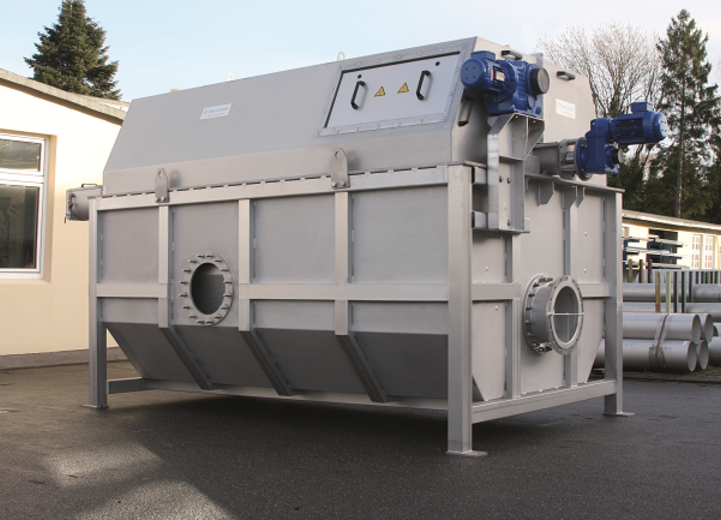

Depending on the product version, the cleaning water and screenings are discharged from the drum via the internal dirty water flume, a screenings press or a spiral conveyor. Installation can be in a concrete chamber or in a steel or plastic casing.
